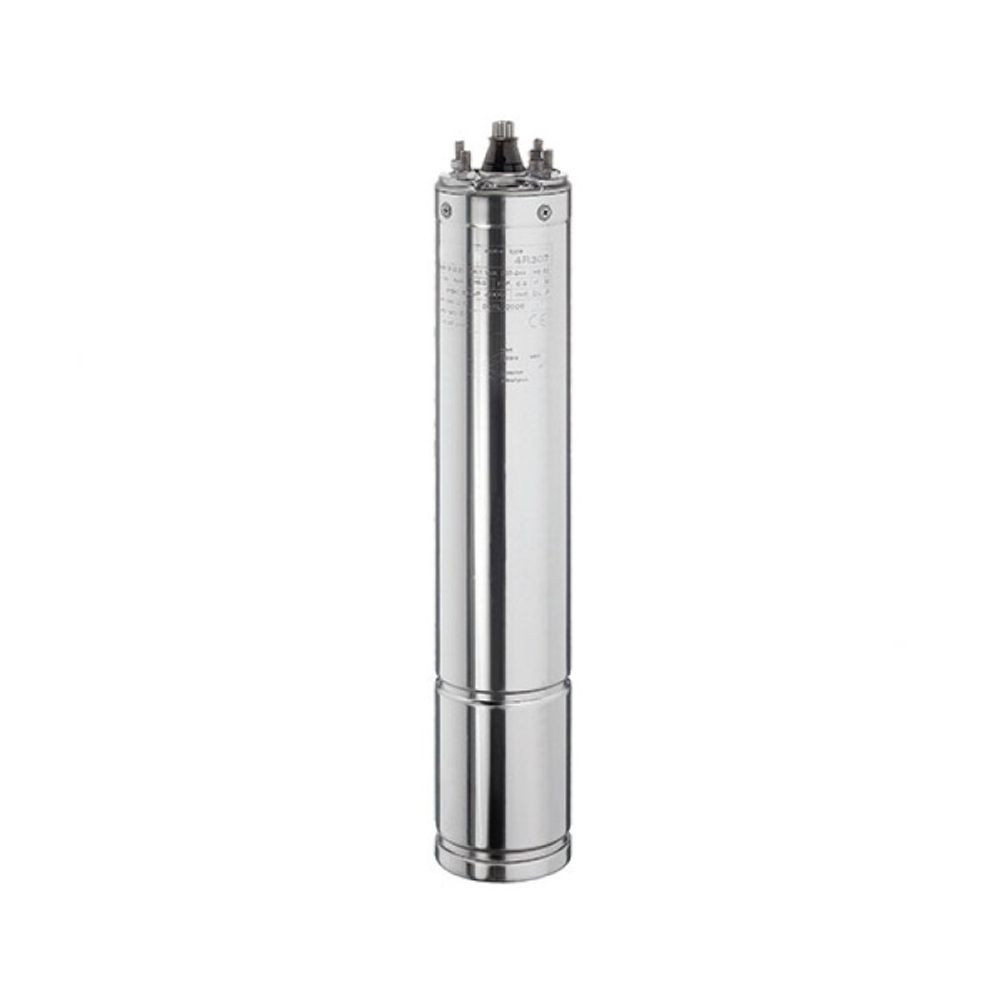

STAIRS Motor Submersible 100mm 7.5kw 400v

100 mm Rewindable Submersible Motor For Standard Applications With Maintenance Free Lubricated Bearings And Approved Non-Toxic Vegetable Oil. Dimensions And Flange According To Nema4-Standards. Matching Stairs Control Boxes Must Be Installed Or A Usb Control Box. Maximum Water Temperature Of 35 degreesC And Immersion Depth Of 200 M. Motor Can Be Installed In A Horizontal Or Vertical Position. Motor Fitted With A Removable Lead-Out Cable. 0.37 Kw To 4 Kw. General Specifications: Mounting Flange: 4 Nema Standard; Insulation Class F; Protection Ip68; single phase Motors: 0.37 Kw Up To 4.0 Kw. Three-Phase Motors: 0.37 Kw Up To 7.5 Kw; Standard Voltages: 1 ~ 230 V (50 Hz); 3 ~ 230 V Or 400 V (50 Hz). Cable Length: 1.7 M - 0.37 Kw Up To 1.5 Kw; 2.5 M - 2.2 Kw Up To 7.5 Kw. Materials: Motor Shell - 304 Stainless Steel; Mechanical Seal - Ceramic/Carbon; Shaft (0.5 - 3 Hp) - 304 Stainless Steel; Shaft (4 -10 Hp) - 630 Stainless Steel.
