Pressure Gauge 1/4"rear 50mm D5014r16

Pressure Gauge 1/4"rear 50mm D5014r16
Pressure Gauge 1/4"rear 50mm D5014r16
Nationwide Delivery Available
  • Stock: 2-3 Days
  • Model: GAV M50R-2
  • Weight: 0.04kg
  • Dim: 50.00mm x 50.00mm x 50.00mm
  • SKU: GAV M50R-2
  • UPC: 6009600405240
  • Availability: Available
  • Lead Time: 7-9 working days
GAV GAV
Based on 0 reviews. - Write a review
R 215.90
Ex VAT: R 187.74
For 15 or more items, click to quote
Add to Cart
Buy Now Question
Add to Wish List
Tags: Brand GAV , GAV , M50R-2 , Pressure Gauge , 50mm Pressure Gauge , 1/4 BSP Rear Pressure Gauge , Compressed Air Gauge , Pneumatic Pressure Gauge , Air Compressor Gauge , D5014R16

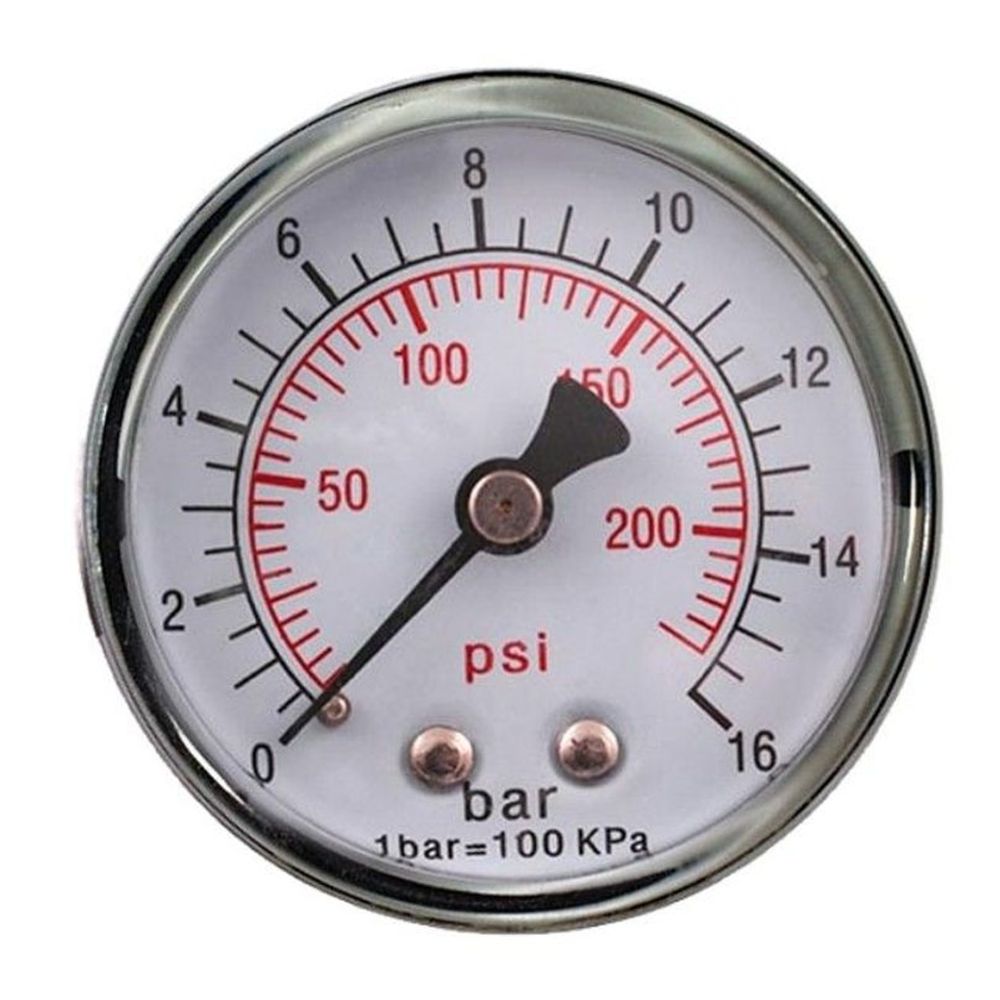

GAV pressure gauge 50mm 1/4" rear

At a Glance: Professional 50 mm analogue pressure gauge with a 1/4" BSP rear connection and dual Bar/PSI scale for accurate compressed-air pressure monitoring.

The GAV M50R-2 pressure gauge is a high-quality analogue pressure gauge designed for monitoring compressed-air systems with accuracy and reliability. Featuring a 50 mm diameter dial, a dual Bar and PSI scale, and a rear-mounted 1/4" BSP male connection, it is ideally suited for air compressors, pressure regulators, FRL units and pneumatic equipment. With a measuring range of 0–16 Bar (0–230 PSI), the gauge provides clear pressure readings to help maintain optimum system performance. Manufactured in Italy, the M50R-2 delivers the durability and precision expected from professional GAV pneumatic components.

Reliable pressure indication for professional compressed-air systems

The GAV M50R-2 provides clear, accurate pressure readings that help maintain the correct operating pressure, improving pneumatic tool performance while helping protect compressors, regulators and air-operated equipment.

Product highlights

  • 50 mm dial Easy-to-read analogue display.
  • Dual pressure scale Displays both Bar and PSI.
  • Rear 1/4" BSP male connection Suitable for larger regulators and compressed-air equipment.
  • 0–16 Bar pressure range Ideal for most industrial compressed-air applications.
  • Made in Italy Genuine GAV professional quality.

Extra Information

  • Designed specifically for compressed-air applications.
  • Rear-entry mounting configuration.
  • Dual pressure scale improves readability.
  • Manufactured in Italy.

Pro Tips

  • Install the gauge using PTFE tape or a suitable thread sealant without blocking the pressure port.
  • Mount the gauge where it can easily be read during normal operation.
  • Avoid subjecting the gauge to excessive vibration or mechanical shock.
  • Check gauge accuracy periodically where precise pressure control is important.
  • Use the gauge downstream of a regulator to monitor regulated outlet pressure.
  • Replace damaged or inaccurate gauges immediately to maintain safe operation.

How to Use

  • Depressurise the compressed-air system.
  • Install the gauge into a compatible 1/4" BSP rear-entry port.
  • Apply thread sealant where required.
  • Pressurise the system gradually.
  • Observe the pressure reading and adjust the regulator if necessary.
  • Inspect the gauge regularly for damage or inaccurate readings.

Features

  • Analogue Bourdon tube mechanism Provides dependable pressure measurement.
  • Rear-entry mounting Ideal for pressure regulators and FRL assemblies.
  • Clear dual-scale dial Reads pressure in Bar and PSI.
  • Durable construction Suitable for workshop and industrial environments.

Benefits

  • Accurate pressure monitoring: Helps maintain optimum working pressure.
  • Protects pneumatic equipment: Reduces the risk of over-pressurisation.
  • Easy installation: Standard 1/4" BSP rear connection fits many compressed-air systems.
  • Long service life: Designed for reliable everyday operation.

Application

  • Air compressors
  • Pressure regulators
  • FRL air preparation units
  • Compressed-air distribution systems
  • Pneumatic machinery
  • Industrial workshops

Safety

  • Always depressurise the compressed-air system before installation or removal.
  • Do not exceed the maximum pressure rating of 16 Bar.
  • Protect the gauge from impact and excessive vibration.
  • Inspect the lens and pointer regularly for signs of damage.
  • Use only with compatible compressed-air and pneumatic applications.

Specifications

Description Spec
Brand GAV
Cat No. M50R-2
Product Type Analogue pressure gauge
Model D5014R16
Dial Diameter 50 mm
Connection Position Rear
Thread Size 1/4" BSP Male
Pressure Range 0–16 Bar (0–230 PSI)
Display Dual Bar / PSI Scale
Application Compressed-air systems
Country of Manufacture Italy

In the box:

  • 1 x GAV M50R-2 pressure gauge
