Pressure Gauge 0-16bar 1/4lower63mm

Pressure Gauge 0-16bar 1/4lower63mm
Pressure Gauge 0-16bar 1/4lower63mm
Nationwide Delivery Available
  • Stock: 2-3 Days
  • Model: GAV M63S
  • Weight: 0.08kg
  • Dim: 80.00mm x 63.00mm x 22.00mm
  • SKU: GAV M63S
  • UPC: 6009600405264
  • Availability: Available online only
  • Lead Time: 3-7 working days
GAV GAV
Based on 0 reviews. - Write a review
R 221.90
Ex VAT: R 192.96
For 15 or more items, click to quote
Add to Cart
Buy Now Question
Add to Wish List
Tags: Brand GAV , GAV , M63S , Pressure Gauge , 63mm Pressure Gauge , 1/4 BSP Bottom Pressure Gauge , 0-16 Bar Pressure Gauge , Compressed Air Gauge , Pneumatic Pressure Gauge

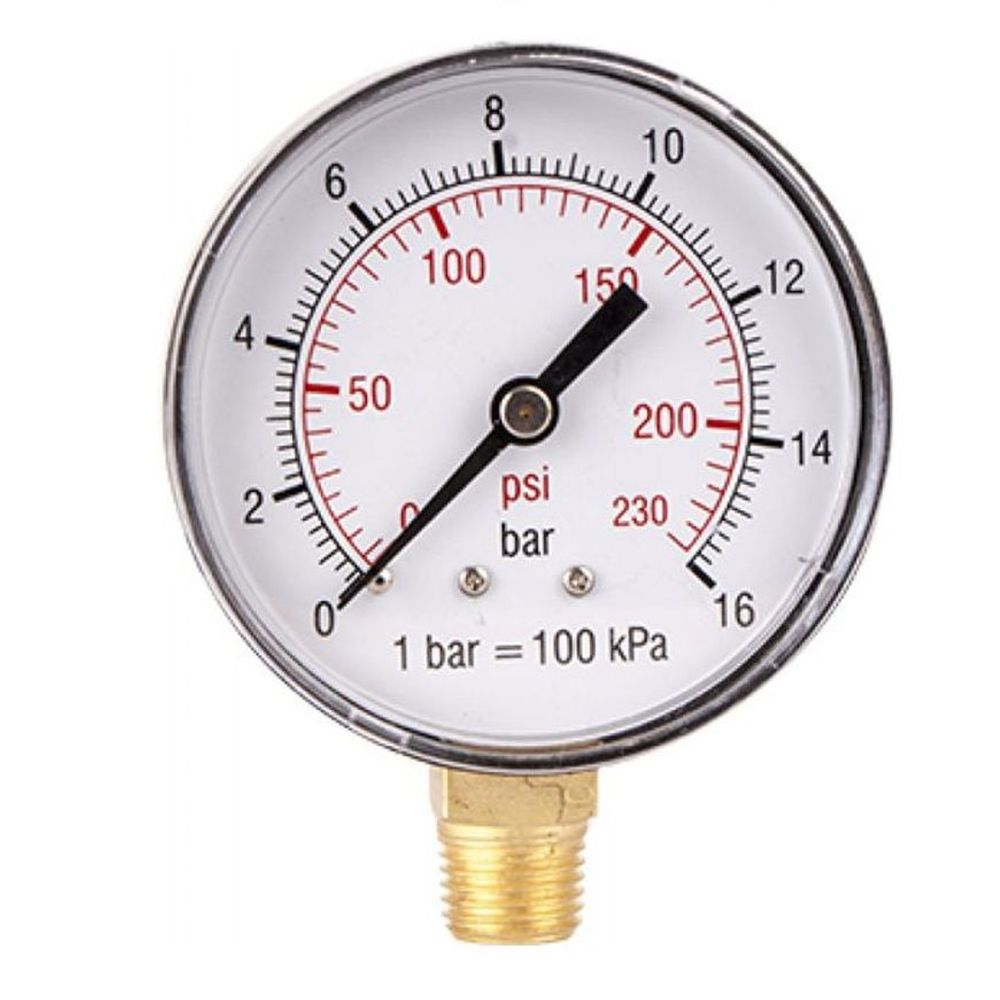

GAV pressure gauge 0–16 Bar 63mm 1/4" lower

At a Glance: Professional 63 mm analogue pressure gauge with a 1/4" BSP bottom connection, dual Bar/PSI scale and a 0–16 Bar measuring range.

The GAV M63S is a professional analogue pressure gauge designed for accurate monitoring of compressed-air systems. Featuring a large 63 mm dial with dual Bar and PSI scales, it provides clear pressure readings for compressors, pressure regulators, FRL units and industrial pneumatic equipment. The gauge is fitted with a 1/4" BSP male bottom connection and measures pressures from 0–16 Bar (0–230 PSI), making it ideal for general compressed-air applications. Manufactured in Italy, the GAV M63S delivers the quality, durability and accuracy expected from genuine GAV pneumatic components. :contentReference[oaicite:0]{index=0}

Reliable pressure monitoring for compressed-air systems

The GAV M63S provides accurate pressure indication to help optimise pneumatic equipment performance, improve system efficiency and protect air equipment from excessive operating pressures.

Product highlights

  • Large 63 mm dial Easy-to-read analogue display.
  • Dual pressure scale Displays pressure in both Bar and PSI.
  • 1/4" BSP male bottom connection Suitable for compressors, regulators and FRL units.
  • 0–16 Bar measuring range Ideal for workshop and industrial compressed-air systems.
  • Made in Italy Genuine GAV professional quality.

Extra Information

  • Designed specifically for compressed-air applications.
  • Bottom-entry mounting configuration.
  • Dual Bar and PSI pressure scale.
  • Manufactured in Italy.

Pro Tips

  • Install the gauge using PTFE tape or a suitable thread sealant without blocking the pressure port.
  • Mount the gauge where it can easily be read during normal operation.
  • Avoid excessive vibration or mechanical shock to maximise service life.
  • Compare readings periodically with a calibrated reference gauge where precision is important.
  • Install downstream of the regulator to monitor regulated outlet pressure accurately.
  • Replace damaged or inaccurate gauges immediately to maintain safe system operation.

How to Use

  • Depressurise the compressed-air system.
  • Install the gauge into a compatible 1/4" BSP bottom-entry port.
  • Apply thread sealant where required.
  • Pressurise the system gradually.
  • Monitor the pressure reading and adjust the regulator if necessary.
  • Inspect the gauge regularly for damage or inaccurate readings.

Features

  • Analogue Bourdon tube mechanism Delivers reliable mechanical pressure measurement.
  • Bottom-entry mounting Fits compressors, regulators and air preparation equipment.
  • Dual Bar/PSI scale Provides quick pressure reference.
  • Durable metal housing Built for demanding workshop and industrial environments.

Benefits

  • Accurate pressure monitoring: Maintains optimum compressed-air system performance.
  • Protects pneumatic equipment: Helps prevent damage caused by excessive pressure.
  • Easy installation: Standard 1/4" BSP bottom thread fits many pneumatic systems.
  • Long service life: Designed for reliable everyday operation.

Application

  • Air compressors
  • Pressure regulators
  • FRL air preparation units
  • Compressed-air distribution systems
  • Pneumatic machinery
  • Industrial workshops

Safety

  • Always depressurise the compressed-air system before installation or removal.
  • Do not exceed the maximum pressure rating of 16 Bar.
  • Protect the gauge from impact and excessive vibration.
  • Inspect the lens and pointer regularly for signs of damage.
  • Use only with compatible compressed-air and pneumatic applications.

Specifications

Description Spec
Brand GAV
Cat No. M63S
Product Type Analogue pressure gauge
Dial Diameter 63 mm
Connection Position Bottom
Thread Size 1/4" BSP Male
Pressure Range 0–16 Bar (0–230 PSI)
Display Dual Bar / PSI Scale
Application Compressed-air systems
Country of Manufacture Italy

In the box:

  • 1 x GAV M63S pressure gauge
